Metal detector

Key Specifications/Special Features:

• Description:

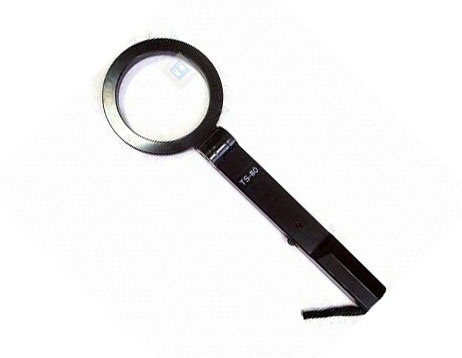

  • TS80 metal detector is a mini-tpye hand held metal detector, mainly for security check in important places like school, hospital, airport and court
  • It will give an alarm sound and vibration with low voltage power alarm
  • Even the mini metal like the coin can be detected by the equipment
• Specification:
  • Sensitivity (detecting distance):
    Coin (1 Ruan RMB): 70mm
    20mm steel pipe: 120mm
  • Operating temperature: -10 to +50°C
  • Humidity:
    -10 to 40°C: 0 to 75%
    -40 to 50°C: 0 to 45%
  • Current: <5mA
  • Power: 9V IEC 6F 22 NEDA 1604
  • Size: 395 (operation) and 260mm (storage)
  • Size of the detection face: 134mm
  • Weight: 230g (battery excluded)
• Maintenance:
  • Please change the switch to the off position when you do not use the metal detector and maintain its clean and dry appearance
  • To do that, you can use wet cloth to wipe it but shall not use any chemical detergent
  • Avoid heavy impact and humidity
  • If this unit needs replacing the accessories, please call a qualified, technician, otherwise, it will lower the unit to prevent electric shock
  • Do not insert any object into unit to prevent electric shock
  • The detector should be stored in a dry warm environment if you do not see it
